Create a Module Project

Overview

Before you can implement modular architecture in your application, you need to set up a project that supports module development. This section guides you through creating a new project from scratch and understanding its structure.

1. Choose Empty Ability as project template and proceed.

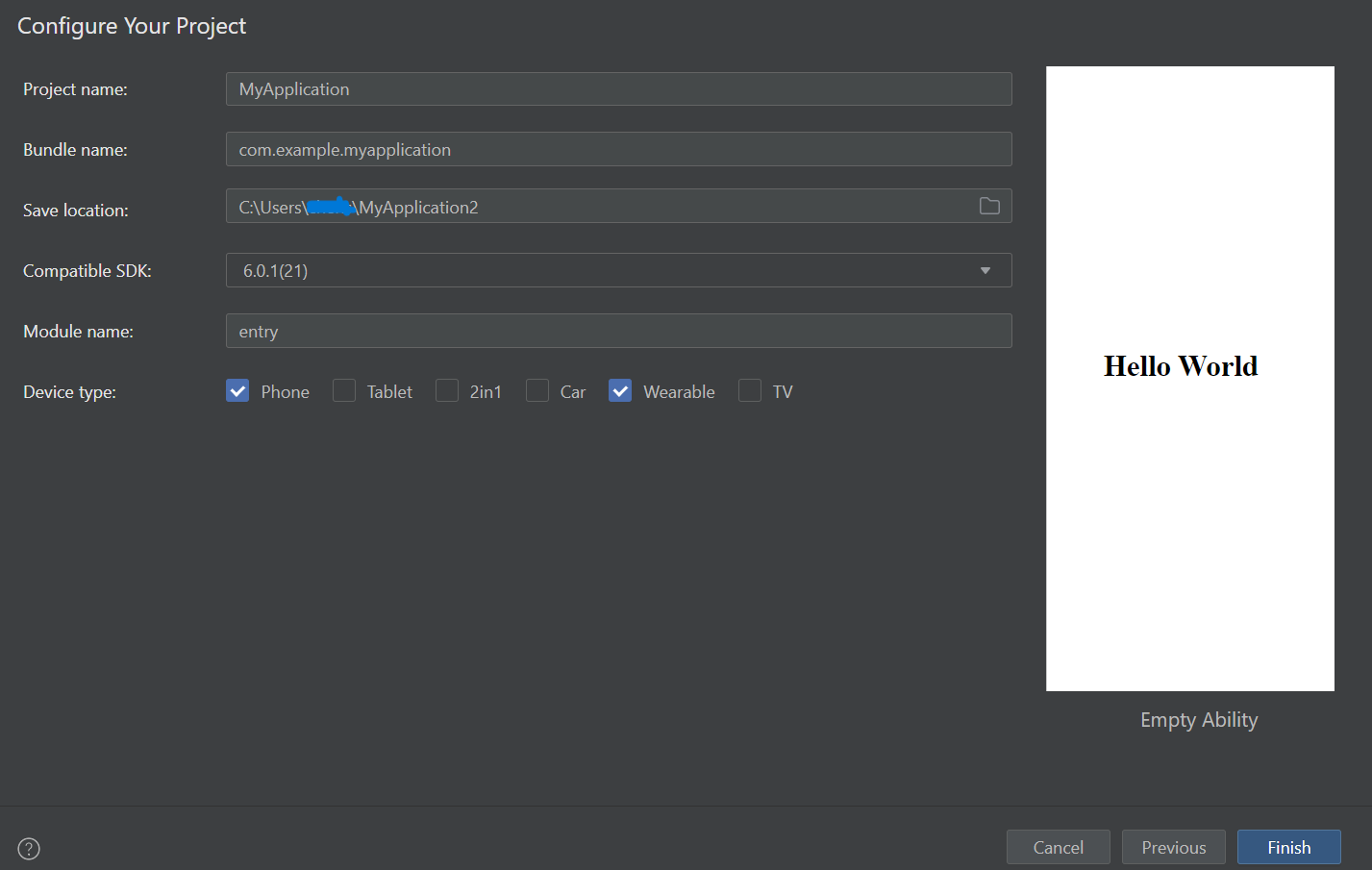

2. In this tutorial we will separate modules for wearable and mobile applications. Make sure you have selected Phone and Wearable in the Device type section.

In the current project, right-click the project name, select New, and then choose Module.

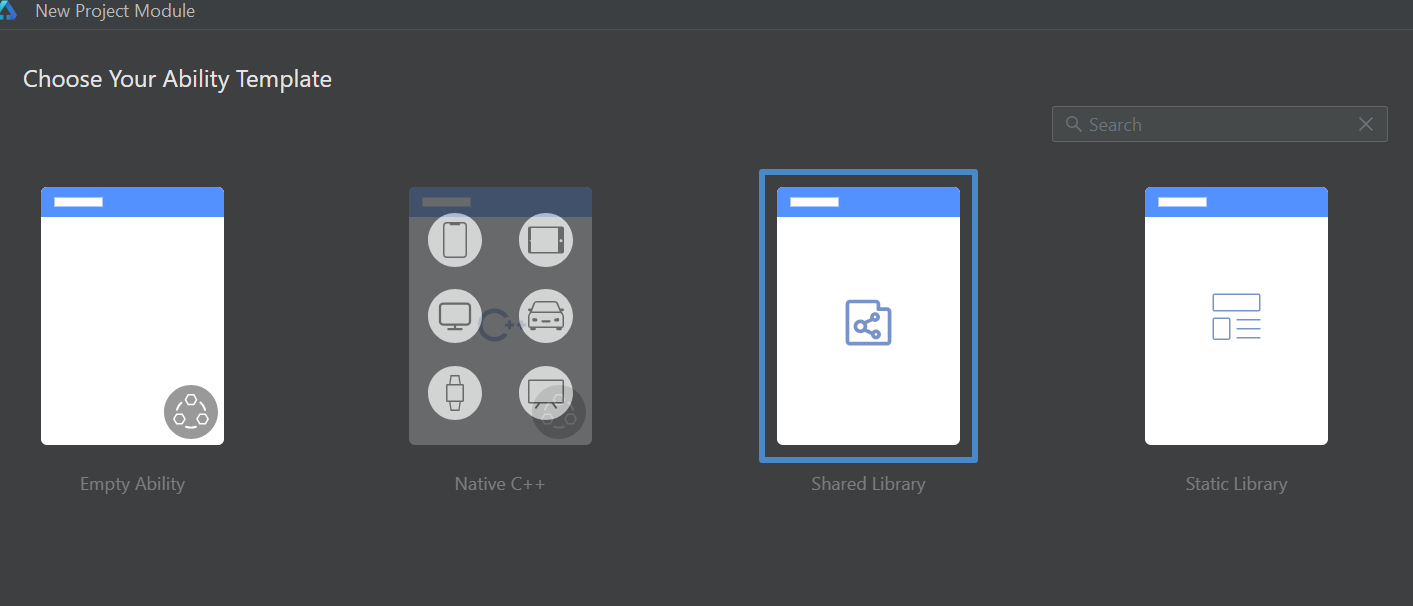

By default, there are two shared package templates available: one for dynamic shared packages and one for static shared packages, as shown in the figure below.

Set the shared package name and click Finish. Here I choose Shared Library in this tutorial.

After the dynamic shared package is created, its structure is shown below, with the type set to shared. If you create a static shared package, the type here will be har.
