@Link Decorator

An @Link decorated variable creates two-way synchronization with a variable of its parent component.

NOTE

This decorator can be used in ArkTS widgets since API version 9.

Feature and Constraint

• An @Link decorated variable in a child component shares the same value with a variable in its parent component.
• The @Link decorator cannot be used in custom components decorated by @Entry.

Usage Scenarios

Example for @Link with Simple and Class Types

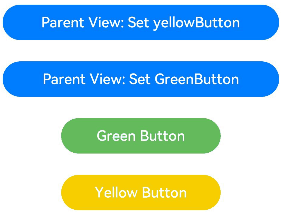

In the following example, after Parent View: Set yellowButton and Parent View: Set GreenButton of the parent component ShufflingContainer are clicked, the change in the parent component is synchronized to the child components.

1. After buttons of the child components GreenButton and YellowButton are clicked, the child components (@Link decorated variables) change accordingly. Due to the two-way synchronization relationship between @Link and @State, the changes are synchronized to the parent component.

2. When a button in the parent component ShufflingContainer is clicked, the parent component (@State decorated variable) changes, and the changes are synchronized to the child components, which are then updated accordingly.

class GreenButtonState {
  width: number = 0;

  constructor(width: number) {
    this.width = width;
  }
}

@Component
struct GreenButton {
  @Link greenButtonState: GreenButtonState;

  build() {
    Button('Green Button')
      .width(this.greenButtonState.width)
      .height(40)
      .backgroundColor('#64bb5c')
      .fontColor('#FFFFFF, 90%')
      .onClick(() => {
        if (this.greenButtonState.width < 700) {
          // Update the attribute of the class. The change can be observed and synchronized back to the parent component.
          this.greenButtonState.width += 60;
        } else {
          // Update the class. The change can be observed and synchronized back to the parent component.
          this.greenButtonState = new GreenButtonState(180);
        }
      })
  }
}

@Component
struct YellowButton {
  @Link yellowButtonState: number;

  build() {
    Button('Yellow Button')
      .width(this.yellowButtonState)
      .height(40)
      .backgroundColor('#f7ce00')
      .fontColor('#FFFFFF, 90%')
      .onClick(() => {
        // The change of the decorated variable of a simple type in the child component can be synchronized back to the parent component.
        this.yellowButtonState += 40.0;
      })
  }
}

@Entry
@Component
struct ShufflingContainer {
  @State greenButtonState: GreenButtonState = new GreenButtonState(180);
  @State yellowButtonProp: number = 180;

  build() {
    Column() {
      Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center }) {
        // Simple type @Link in the child component synchronized from @State in the parent component.
        Button('Parent View: Set yellowButton')
          .width(312)
          .height(40)
          .margin(12)
          .fontColor('#FFFFFF, 90%')
          .onClick(() => {
            this.yellowButtonProp = (this.yellowButtonProp < 700) ? this.yellowButtonProp + 40 : 100;
          })
        // Class type @Link in the child component synchronized from @State in the parent component.
        Button('Parent View: Set GreenButton')
          .width(312)
          .height(40)
          .margin(12)
          .fontColor('#FFFFFF, 90%')
          .onClick(() => {
            this.greenButtonState.width = (this.greenButtonState.width < 700) ? this.greenButtonState.width + 100 : 100;
          })
        // Initialize the class type @Link.
        GreenButton({ greenButtonState: $greenButtonState }).margin(12)
        // Initialize the simple type @Link.
        YellowButton({ yellowButtonState: $yellowButtonProp }).margin(12)
      }
    }
  }
}

Array Type @Link

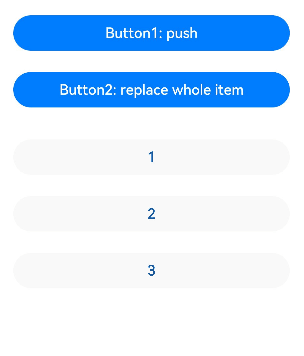

The ArkUI framework can observe the addition, deletion, and replacement of array items. It should be noted that, in the following example, the type of the @Link and @State decorated variables is the same: number[]. It is not allowed to define the @Link decorated variable in the child component as type number (@Link item: number), and create child components for each array item in the @State decorated array in the parent component.

@Component
struct Child {
  @Link items: number[]; // Link array for bidirectional synchronization

  build() {
    Column({ space: 10 }) {
      Button(`Button1: push`).onClick(() => {
        // Add a new element to the array, synchronized back to the parent
        this.items.push(this.items.length + 1);
      })
        .width('80%')
        .height(40)
      Button(`Button2: replace whole item`).onClick(() => {
        // Replace the entire array, synchronized back to the parent
        this.items = [100, 200, 300];
      })
        .width('80%')
        .height(40)
    }
    .margin(10)
  }
}

@Entry
@Component
struct Parent {
  @State arr: number[] = [1, 2, 3]; // State array for synchronization

  build() {
    Column() {
      Child({ items: $arr }) // Initialize Child with @Link to parent state array
      ForEach(this.arr,
        (item: number) => {
          Row() {
            Text(`${item}`) // Display each item in the array
              .fontColor('#d7072858')
              .height(40)
          }
          .margin(10)
          .width('80%')
          .justifyContent(FlexAlign.Center)
          .backgroundColor('#1e000000')
          .borderRadius(20)
        },
        (item: number) => item.toString()
      )
    }
    .width('100%')
  }
}

Additional Information

For additional information please refer to the ArkTS Link Decorator
