@Prop Decorator

One-way synchronization is supported between an @Prop decorated variable a variable of its parent component. This means that, an @Prop decorated variable is mutable, and its changes will not be synchronized to the parent component.

Features

For the @Prop decorated variable of a child component, the change synchronization to the parent component is uni-directional.

An @Prop variable is allowed to be modified locally, but the change does not propagate back to its parent component.
Whenever the data source changes, the @Prop decorated variable gets updated, and any locally made changes are overwritten. In other words, the change is synchronized from the parent component to the (owning) child component, but not the other way around.

Restrictions

When decorating variables, @Prop makes a deep copy, during which all types, except primitive types, Map, Set, Date, and Array, will be lost. For example, for complex types provided by N-API, such as PixelMap, because they are partially implemented in the native code, complete data cannot be obtained through a deep copy in ArkTS.
The @Prop decorator cannot be used in custom components decorated by @Entry.

Use Scenarios

Simple Type Sync from @State of the Parent Component to @Prop of the Child Component

In this example, the @Prop decorated count variable in the CountDownComponent child component is initialized from the @State decorated countDownStartValue variable in the ParentComponent. When Try again is touched, the value of the count variable is modified, but the change remains within the CountDownComponent and does not affect the ParentComponent.

Updating countDownStartValue in the ParentComponent will update the value of the @Prop decorated count.

@Component
struct CountDownComponent {
  @Prop count: number = 0;
  costOfOneAttempt: number = 1;

  build() {
    Column() {
      if (this.count > 0) {
        Text(`You have ${this.count} Nuggets left`)
      } else {
        Text('Game over!')
      }
      // Changes to the @Prop decorated variables are not synchronized to the parent component.
      Button(`Try again`).onClick(() => {
        this.count -= this.costOfOneAttempt;
      })
    }
  }
}

@Entry
@Component
struct ParentComponent {
  @State countDownStartValue: number = 10;

  build() {
    Column() {
      Text(`Grant ${this.countDownStartValue} nuggets to play.`)
      // Changes to the data source provided by the parent component are synchronized to the child component.
      Button(`+1 - Nuggets in New Game`).onClick(() => {
        this.countDownStartValue += 1;
      })
      // Updating the parent component will also update the child component.
      Button(`-1  - Nuggets in New Game`).onClick(() => {
        this.countDownStartValue -= 1;
      })

      CountDownComponent({ count: this.countDownStartValue, costOfOneAttempt: 2 })
    }
  }
}

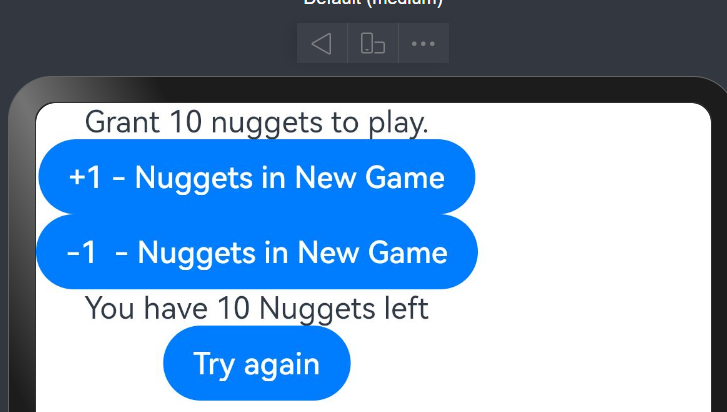

The display is previewed as the following:

In the preceding example:

On initial render, when the CountDownComponent child component is created, its @Prop decorated count variable is initialized from the @State decorated countDownStartValue variable in the ParentComponent.
When the “+1” or “-1” button is touched, the @State decorated countDownStartValue of the ParentComponent changes. This will cause the ParentComponent to re-render. At the minimum, the CountDownComponent will be updated because of the change in the count variable value.
Because of the change in the count variable value, the CountDownComponent child component will re-render. At a minimum, the if statement’s condition (this.counter> 0) is evaluated, and the <Text> child component inside the if statement would be updated.
When Try again in the CountDownComponent child component is touched, the value of the count variable is modified, but the change remains within the child component and does not affect the countDownStartValue in the parent component.
Updating countDownStartValue will overwrite the local value changes of the @Prop decorated count in the CountDownComponent child component.

Simple Type @Prop Synced from @State Array Item in Parent Component

The @State decorated array an array item in the parent component can be used as data source to initialize and update a @Prop decorated variable. In the following example, the @State decorated array arr in the parent component Index initializes the @Prop decorated value variable in the child component Child.

@Component
struct Child {
  @Prop value: number = 0;

  build() {
    Text(`${this.value}`)
      .fontSize(50)
      .onClick(() => {
        this.value++
      })
  }
}

@Entry
@Component
struct Index {
  @State arr: number[] = [1, 2, 3];

  build() {
    Row() {
      Column() {
        Child({ value: this.arr[0] })
        Child({ value: this.arr[1] })
        Child({ value: this.arr[2] })

        Divider().height(5)

        ForEach(this.arr,
          (item: number) => {
            Child({ value: item })
          },
          (item: string) => item.toString()
        )
        Text('replace entire arr')
          .fontSize(50)
          .onClick(() => {
            // Both arrays contain item "3".
            this.arr = this.arr[0] == 1 ? [3, 4, 5] : [1, 2, 3];
          })
      }
    }
  }
}

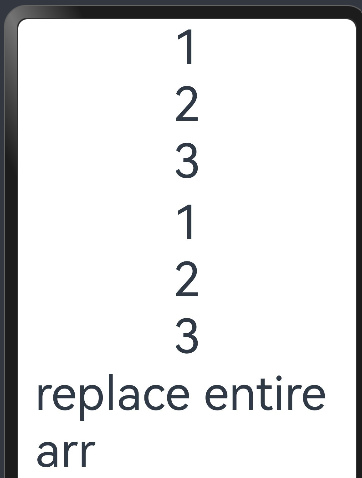

Initial render creates six instances of the Child component. Each @Prop decorated variable is initialized with a copy of an array item. The onclick event handler of the Child component changes the local variable value.

Click 1 six times, 2 five times, and 3 four times on the page. The local values of all variables are then changed to 7.

7
7
7
----
7
7
7

After replace entire arr is clicked, the following information is displayed:

3
4
5
----
7
4
5

Changes made in the Child component are not synchronized to the parent component Index. Therefore, even if the values of the six instances of the Child component are 7, the value of this.arr in the Index component is still [1,2,3].
After replace entire arr is clicked, if this.arr[0] == 1 is true, this.arr is set to [3, 4, 5].
Because this.arr[0] has been changed, the Child({value: this.arr[0]}) component synchronizes the update of this.arr[0] to the instance’s @Prop decorated variable. The same happens for Child({value: this.arr[1]}) and Child({value: this.arr[2]}).
The change of this.arr causes ForEach to update: According to the diff algorithm, the array item with the ID 3 is retained in this update, array items with IDs 1 and 2 are deleted, and array items with IDs 4 and 5 are added. The array before and after the update is [1, 2, 3] and [3, 4, 5], respectively. This implies that the Child instance generated for item 3 is moved to the first place, but not updated. In this case, the component value corresponding to 3 is 7, and the final render result of ForEach is 7, 4, and 5.

Class Object Type @Prop Synced from @State Class Object Property in Parent Component

In a library with one book and two readers, each reader can mark the book as read, and the marking does not affect the other reader. Technically speaking, local changes to the @Prop decorated book object do not sync back to the @State decorated book in the Library component.

In this example, the @Observed decorator can be applied to the book class, but it is not mandatory. It is only needed for nested structures.

class Book {
  public title: string;
  public pages: number;
  public readIt: boolean = false;

  constructor(title: string, pages: number) {
    this.title = title;
    this.pages = pages;
  }
}

@Component
struct ReaderComp {
  @Prop book: Book = new Book("", 0);

  build() {
    Row() {
      Text(this.book.title)
      Text(`...has${this.book.pages} pages!`)
      Text(`...${this.book.readIt ? "I have read" : 'I have not read it'}`)
        .onClick(() => this.book.readIt = true)
    }
  }
}

@Entry
@Component
struct Library {
  @State book: Book = new Book('100 secrets of C++', 765);

  build() {
    Column() {
      ReaderComp({ book: this.book })
      ReaderComp({ book: this.book })
    }
  }
}

The display is previewed as the following:

Additional Information

For additional information please refer to the ArkTS Prop Decorator
