@Observed and @ObjectLink Decorators

@ObjectLink and @Observed class decorators are used for two-way data synchronization in scenarios involving nested objects or arrays, making up for the limitation that other decorators can only observe changes in one layer.

NOTE

These two decorators can be used in ArkTS widgets since API version 9.

Features

@Observed is used to mark a class so that its created instances can observe property changes, mainly used in nested class scenarios.
@ObjectLink decorates the state variables in the child component, receives the instance of the class decorated with @Observed, and establishes a two-way data binding with the corresponding state variable in the parent component.

Constraints

Using @Observed to decorate a class changes the original prototype chain of the class. Using @Observed and other class decorators to decorate the same class may cause problems.
The @ObjectLink decorator cannot be used in custom components decorated by @Entry.
Value assignment is not allowed for the @ObjectLink decorated variable. To assign a value, use @Prop instead.

Usage Scenarios

Nested Object

NOTE

NextID is used to generate a unique, persistent key for each array item during ForEach rendering, so as to identify the corresponding component.

// objectLinkNestedObjects.ets
let NextID: number = 1;

@Observed
class Bag {
  public id: number;
  public size: number;

  constructor(size: number) {
    this.id = NextID++;
    this.size = size;
  }
}

@Observed
class User {
  public bag: Bag;

  constructor(bag: Bag) {
    this.bag = bag;
  }
}

@Observed
class Book {
  public bookName: BookName;

  constructor(bookName: BookName) {
    this.bookName = bookName;
  }
}

@Observed
class BookName extends Bag {
  public nameSize: number;

  constructor(nameSize: number) {
    // Invoke the parent class method to process nameSize.
    super(nameSize);
    this.nameSize = nameSize;
  }
}

@Component
struct ViewA {
  label: string = 'ViewA';
  @ObjectLink bag: Bag;

  build() {
    Column() {
      Text(`ViewA [${this.label}] this.bag.size = ${this.bag.size}`)
        .fontColor('#ffffffff')
        .backgroundColor('#ff3d9dba')
        .width(320)
        .height(50)
        .borderRadius(25)
        .margin(10)
        .textAlign(TextAlign.Center)
      Button(`ViewA: this.bag.size add 1`)
        .width(320)
        .backgroundColor('#ff17a98d')
        .margin(10)
        .onClick(() => {
          this.bag.size += 1;
        })
    }
  }
}

@Component
struct ViewC {
  label: string = 'ViewC1';
  @ObjectLink bookName: BookName;

  build() {
    Row() {
      Column() {
        Text(`ViewC [${this.label}] this.bookName.size = ${this.bookName.size}`)
          .fontColor('#ffffffff')
          .backgroundColor('#ff3d9dba')
          .width(320)
          .height(50)
          .borderRadius(25)
          .margin(10)
          .textAlign(TextAlign.Center)
        Button(`ViewC: this.bookName.size add 1`)
          .width(320)
          .backgroundColor('#ff17a98d')
          .margin(10)
          .onClick(() => {
            this.bookName.size += 1;
            console.log('this.bookName.size:' + this.bookName.size)
          })
      }
      .width(320)
    }
  }
}

@Entry
@Component
struct ViewB {
  @State user: User = new User(new Bag(0));
  @State child: Book = new Book(new BookName(0));

  build() {
    Column() {
      ViewA({ label: 'ViewA #1', bag: this.user.bag })
        .width(320)
      ViewC({ label: 'ViewC #3', bookName: this.child.bookName })
        .width(320)
      Button(`ViewB: this.child.bookName.size add 10`)
        .width(320)
        .backgroundColor('#ff17a98d')
        .margin(10)
        .onClick(() => {
          this.child.bookName.size += 10
          console.log('this.child.bookName.size:' + this.child.bookName.size)
        })
      Button(`ViewB: this.user.bag = new Bag(10)`)
        .width(320)
        .backgroundColor('#ff17a98d')
        .margin(10)
        .onClick(() => {
          this.user.bag = new Bag(10);
        })
      Button(`ViewB: this.user = new User(new Bag(20))`)
        .width(320)
        .backgroundColor('#ff17a98d')
        .margin(10)
        .onClick(() => {
          this.user = new User(new Bag(20));
        })
    }
  }
}

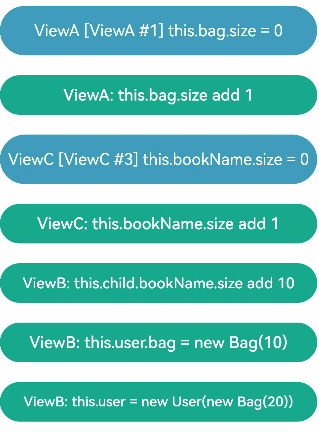

The @Observed decorated BookName class can observe changes in the attributes inherited from the base class.

Event handles in ViewB:

this.user.bag = new Bag(10) and this.user = new User(new Bag(20)): Change to the @State decorated variable size and its attributes.
this.child.bookName.size += …: Change at the second layer. Though @State cannot observe changes at the second layer, the change of an attribute of @Observed decorated Bag, which is attribute size in this example, can be observed by @ObjectLink.

Event handle in ViewC:

this.bookName.size += 1: A change to the @ObjectLink decorated variable size causes the button label to be updated. Unlike @Prop, @ObjectLink does not have a copy of its source. Instead, @ObjectLink creates a reference to its source.
The @ObjectLink decorated variable is read-only. Assigning this.bookName = new bookName(…) is not allowed. Once value assignment occurs, the reference to the data source is reset and the synchronization is interrupted.

Additional Information

For additional information please refer to the ArkTS Observed and ObjectLink Decorator
