List Component

In typical mobile applications, list is very common and basic component. For example, we can find list in settings page, contact book, and product catalogs.

The List component supports the generation of child components in various rendering modes like conditional rendering and rendering of repeated content.

Layout

A list automatically arranges child components in the direction it scrolls. Adding or removing child components from the list will trigger re-arrangement of the child components.

As shown in the following figure, in a vertical list, ListItemGroup or ListItem components are automatically arranged vertically.

ListItemGroup is used to display list data by group. Its child component is also ListItem. ListItem represents a list item, which can contain a single child component.

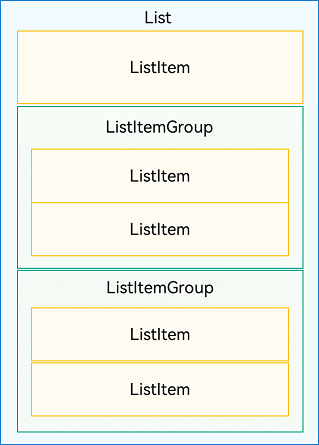

Figure 1 Relationships between List, ListItemGroup, and ListItem

NOTE

A List component can contain only ListItemGroup or ListItem as its child components. ListItemGroup and ListItem must be used together with List.

Display data in List

The list displays a collection of items horizontally or vertically and can scroll to reveal content off the screen. In the simplest case, a List component is statically made up of ListItem components.

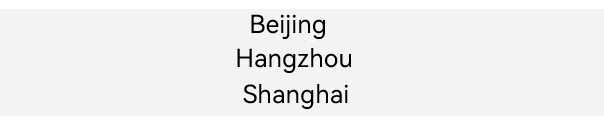

Figure 2 Example of a city list

@Entry
@Component
struct CityList {
  build() {
    List() {
      ListItem() {
        Text('Beijing').fontSize(24)
      }

      ListItem() {
        Text('Hangzhou').fontSize(24)
      }

      ListItem() {
        Text('Shanghai').fontSize(24)
      }
    }
    .backgroundColor('#FFF1F3F5')
    .alignListItem(ListItemAlign.Center)
  }
}

Each <ListItem> component can contain only one root child component. Therefore, it does not allow for child components in tile mode. If tile mode is required, encapsulate the child components into a container or create a custom component.

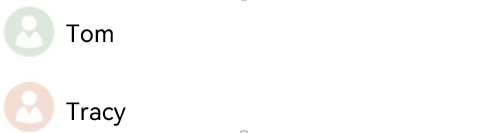

Figure 3 Example of a contacts list

As shown above, as a list item, each contact has a profile picture and a name. To present it, you can encapsulate Image and Text components into a Row container.

List() {
  ListItem() {
    Row() {
      Image($r('app.media.iconE'))
        .width(40)
        .height(40)
        .margin(10)

      Text ('Tom')
        .fontSize(20)
    }
  }

  ListItem() {
    Row() {
      Image($r('app.media.iconF'))
        .width(40)
        .height(40)
        .margin(10)

      Text ('Tracy')
        .fontSize(20)
    }
  }
}

Iterating List Content

Compared with a static list, a dynamic list is more common in applications. You can use ForEach to obtain data from the data source and create components for each data item.

For example, when creating a contacts list, you can store the contact name and profile picture data in a Contact class structure to the contacts array, and nest ListItems in ForEach, thereby reducing repeated code needed for tiling similar list items.

import util from '@ohos.util';

class Contact {
  key: string = util.generateRandomUUID(true);
  name: string;
  icon: Resource;

  constructor(name: string, icon: Resource) {
    this.name = name;
    this.icon = icon;
  }
}

@Entry
@Component
struct SimpleContacts {
  private contacts: Array<object> = [
    new Contact ('Tom', $r("app.media.icon_user1")),
    new Contact ('Tracy', $r("app.media.icon_user2")),
  ]

  build() {
    List() {
      ForEach(this.contacts, (item: Contact) => {
        ListItem() {
          Row() {
            Image(item.icon)
              .width(40)
              .height(40)
              .margin(10)
            Text(item.name).fontSize(20)
          }
          .width('100%')
          .justifyContent(FlexAlign.Start)
        }
      }, (item: Contact) => JSON.stringify(item))
    }
    .width('100%')
  }
}

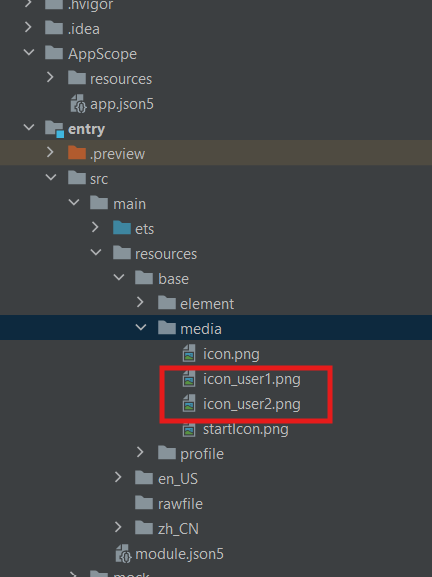

You can get the icons used in above example here: icon_user1, icon_user2, download and put them into your project under the following path: Your project -> entry -> src -> main -> resources -> base -> media.

The effect is drawing as follows:

Customizing the List Style

Setting the Spacing

When initializing a list, you can use the space parameter to add spacing between list items. In the following example, a 10vp spacing is added between list items along the main axis:

List({ space: 10 }) {
  // ...
}

Adding Dividers

A divider separates UI items to make them easier to identify.

To add dividers between list items, you can use the divider attribute together with the following style attributes:
strokeWidth and color: stroke width and color of the diver, respectively.

startMargin and endMargin: distance between the divider and the start edge and end edge of the list, respectively.

The following example draws a divider with a stroke thickness of 1 vp from a position 60 vp away from the start edge of the list to a position 10 vp away from the end edge of the list.

class DividerTmp {
  strokeWidth: Length = 1
  startMargin: Length = 60
  endMargin: Length = 10
  color: ResourceColor = '#ffe9f0f0'

  constructor(strokeWidth: Length, startMargin: Length, endMargin: Length, color: ResourceColor) {
    this.strokeWidth = strokeWidth
    this.startMargin = startMargin
    this.endMargin = endMargin
    this.color = color
  }
}

@Entry
@Component
struct EgDivider {
  @State egDivider: DividerTmp = new DividerTmp(1, 60, 10, '#ff0da2a2')
  private numList: number[] = [0, 1, 2, 3, 4, 5]

  build() {
    List() {
      ForEach(this.numList, (item: number) => {
        ListItem() {
          Row() {
            Text(`${item}`)
          }
          .width('100%')
          .justifyContent(FlexAlign.Center)
        }
      })
    }
    .divider(this.egDivider)
  }
}

The effect is drawing as follows:

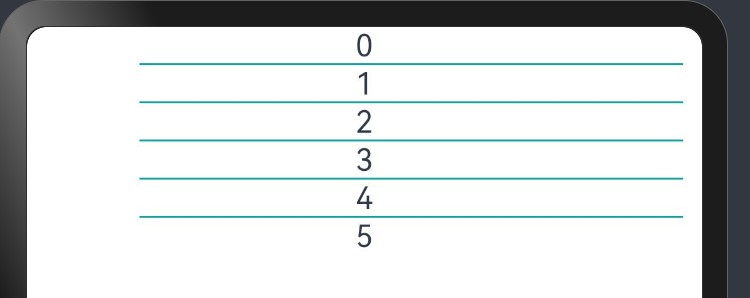

Figure 4 Using dividers between the list items

NOTE

1. The stroke width of the divider causes some space between list items. If the content spacing set for the list is smaller than the stroke width of the divider, the latter is used instead.

2. When a list contains multiple columns, the startMargin and endMargin attributes of the divider apply to each column.

3. The divider is drawn between list items. No divider is drawn above the first list item and below the last list item.

Adding a Scrollbar

When the total height (width) of list items exceeds the screen height (width), the list can scroll vertically (horizontally). The scrollbar of a list enables users to quickly navigate the list content, as shown below.

Figure 5 Scrollbar of a list

When using the List component, you can use the scrollBar attribute to control the display of the list scrollbar. The value type of scrollBar is BarState. When the value is BarState.Auto, the scrollbar is displayed as required: It is displayed when the scrollbar area is touched and becomes thicker when being dragged; it automatically disappears after 2 seconds of inactivity.

The default value of the scrollBar attribute is BarState.Off in API version 9 and earlier versions and BarState.Auto since API version 10.

List() {
  // ...
}
.scrollBar(BarState.Auto)

More Information

You can find more details about List component from this source.

Grid Component

The grid layout consists of cells formed by rows and columns. You can specify the cells where items are located to create various layouts. The grid layout excels at dividing a page into regions and defining the proportion of child components. It is a key adaptive layout and applies to scenarios such as photo gallery, calendar, and calculator.

Layout

Each item in the Grid container corresponds to a GridItem component, as shown below.

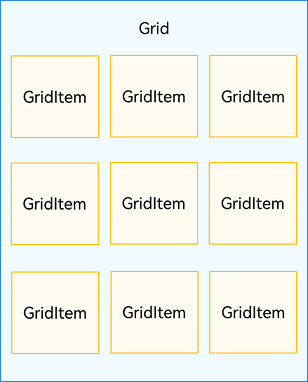

Figure 1 Relationship between Grid and GridItem components

NOTE

The Grid component accepts only GridItem as its child.

Display data in Grid

The grid layout organizes its internal elements in two-dimensional layout mode, as shown in the following figure.

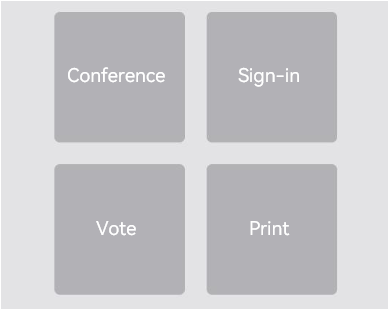

Figure 2 General office services

The Grid component can display a group of GridItem child components in two-dimensional layout mode.

Grid() {
  GridItem() {
    Text('Conference')
      ...
  }

  GridItem() {
    Text('Sign-in')
      ...
  }

  GridItem() {
    Text ('Vote')
      ...
  }

  GridItem() {
    Text ('Print')
      ...
  }
}
.rowsTemplate('1fr 1fr')
.columnsTemplate('1fr 1fr')

Iterating Grid Content

For multiple GridItem components with similar content structures, you are advised to nest them in ForEach statements to reduce repeated code. The effect is the same as above figure 2.

@Entry
@Component
struct OfficeService {
  @State services: Array<string> = ['Conference', 'Vote','Sign-in', 'Print']

  build() {
    Column() {
      Grid() {
        ForEach(this.services, (service:string) => {
          GridItem() {
            Text(service)
          }
        }, (service:string):string => service)
      }
      .rowsTemplate(('1fr 1fr') as string)
      .columnsTemplate(('1fr 1fr') as string)
    }
  }
}

Setting the Number and Proportion of Rows and Columns

You can set the number and proportion of rows and columns to determine the overall arrangement mode of the grid layout. To do so, use the rowsTemplate and columnsTemplate attributes of the Grid component.

The values of rowsTemplate and columnsTemplate are a string consisting of ‘number+fr’ segments, separated by spaces. Wherein fr indicates the number of rows or columns in the grid layout, and the number in front of fr is used to calculate the proportion of the row or column in the grid width, thereby determining the width of the row or column.

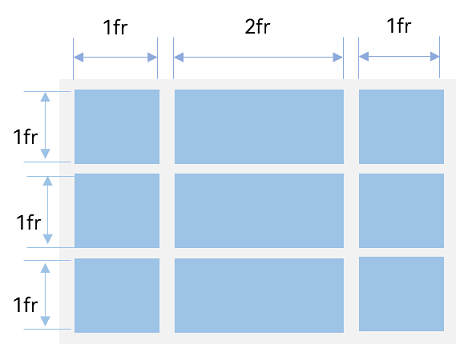

Figure 3 Example of the proportion of rows and columns

The preceding figure shows a grid layout with three rows and three columns. The grid layout is divided into three parts in the vertical direction with each row taking up 1/3, and four parts in the horizontal direction with the first column taking up 1/4, the second column 2/4, and the third column 1/4.

This layout can be implemented by setting rowsTemplate to ‘1fr 1fr 1fr’ and columnsTemplate to ‘1fr 2fr 1fr’.

Grid() {
  ...
}
.rowsTemplate('1fr 1fr 1fr')
.columnsTemplate('1fr 2fr 1fr')

NOTE

When rowsTemplate or columnsTemplate is set for the Grid component, its layoutDirection, maxCount, minCount, and cellLength attributes do not take effect.

Reference

For additional information please refer to Creating a List and Creating a Grid
